- Size: 06
- Place of Origin: Hebei, China (Mainland)
- Brand Name: shuangxu
- Model Number: DN,EN
- Weight: 0.400 kg

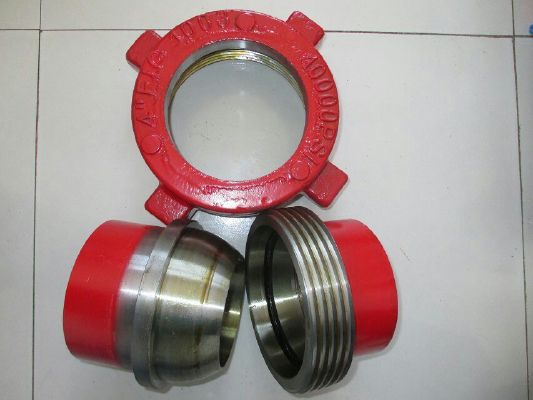

FIG100
Size | Weight | A | B | C | TPI* | Material | ||
(Inches) | (mm) | (LBS) | Nuts | Sub | ||||
2 | 50 | 6.25 | 3.94 | 2.84 | 6.25 | 3 MOD | Steel Forging A105 | |
3 | 80 | 13.65 | 4.9 | 4.1 | 7.8 | 3 MOD | ||
4 | 100 | 22 | 5.7 | 5.2 | 8.9 | 3 MOD | ||
6 | 150 | 45.85 | 6.8 | 7.39 | 13.81 | 3 STD | Steel Casting | Steel Forging |
8 | 200 | 66.65 | 7.23 | 9.7 | 16.125 | 3 STD | Steel Casting | Steel Forging |
*TPI-Threads per inch. |
FIG 200, 206
socket weld and butt weld are also available
Size | Weight | A | B | C | D** | Material | ||
(Inches) | (mm) | (LBS) | 2.8 | 1.6 | 3.8 | ** | Nuts | Sub |
1 | 25 | 1.75 | 3.5 | 2.9 | 5.8 | ** | Steel Forging A105 | |
2 | 50 | 4.9 | 4.5 | 4.1 | 7.8 | ** | ||
3 | 80 | 13.25 | 5.0 | 5.1 | 8.9 | ** | ||
4 | 100 | 18.35 | 6.61 | 7.41 | 12.8 | ** | ||
6 | 150 | 46 | 7.24 | 9.65 | 13.75 | ** | Steel | Steel Forging |
8 | 200 | 68 | A | B | C | D** | Steel | Steel Forging |
*TPI-Threads per inch. **Weld Ends-Consult Factory. |
FIG 602
Size | Weight | A | B | C | TPI* | Material | |
(Inches) | (mm) | (LBS) | Nuts | Sub | |||
2 | 50 | 12.25 | 5.3 | 2.9 | 6.9 | 4 STD | Steel Forging 4130 |
*TPI-Threads per inch. |
FIG 607
SCH 160 and SCH XXH butt weld are also available
Size | Weight | A | B | C | TPI* | Material | |
(Inches) | (mm) | (LBS) | Nuts | Sub | |||
2 | 50 | 14.64 | 5.5 | 3.1 | 6.9 | 3 STD | Steel Forging 4130 |
*TPI-Threads per inch. |
FIG 1502
SCH 160 and SCH XXH butt weld are also available
Size | Weight | A | B | C | Material | |||
(Inches) | (mm) | (LBS) | Nuts | Sub | ||||
2 | 50 | 19.5 | 7.06 | 3.15 | 7.6 | ** | 3 STD | Steel Forging 4130 |
3 | 80 | 30.48 | 7.63 | 4.45 | 8.8 | ** | 3 1/2 | Steel Forging 4130 |
